LEWA ecoflow diaphragm metering pump all around talent

LEWA ecoflow®
diaphragm metering pump

Its sophisticated modular system makes the ecoflow diaphragm metering pump the correct industrial pump for almost all applications.

Whether toxic, abrasive or sensitive liquids – the ecoflow diaphragm metering pump is the first choice for almost all fluids. Our experts design drive units and pump heads for you individually. The ecoflow series implements a flow rate of up to 19 m³/h per pump head and a discharge pressure of up to 1200 bar.

LEWA ecoflow®

The all-around talent for virtually all industries.

No matter if offshore in rough seas or in production in pharmaceutical cleanrooms – the ecoflow diaphragm metering pump has established itself worldwide in a range of different industries as a reliable and economical metering pump.

It features an exact metering rate and enormous durability in extreme operating conditions. Low life cycle costs and high energy efficiency complete the profile of a true all-around talent.

Thanks to the tried-and-tested modular system, ecoflow diaphragm metering pumps can be configured with various pump heads and drives for almost all applications. Here, we set technological and qualitative standards: Each ecoflow diaphragm metering pump is equipped with the patented DPS diaphragm protection system and produced in Germany.

LEWA ecoflow diaphragm metering pump

Good reasons for a LEWA ecoflow®

The LEWA ecoflow is a hydraulically actuated diaphragm metering pump that provides numerous advantages over comparable pumps.

High suction capability of LEWA process pumps

Unique suction capability

The LEWA ecoflow diaphragm metering pump differs from other pumps due to its unique suction capacity. With an absolute suction pressure of up to 0.1 bar abs., it not only provides a wide array of safe installation options. The operating costs for the entire system can also be lower than with other pumps.

Safe startup

Absolutely safe startup

Starting up the metering pump is safe and easy: When the pump is not operating, a spring pulls the diaphragm into a safe position at all times. This allows us to guarantee maximum safety when starting up your system and a long service life of the diaphragm.

Long lifetime

Low maintenance costs and a long service life

The ecoflow series features a long service life for all components and particularly low maintenance and operating costs. If the regular maintenance intervals are maintained, our diaphragm pumps can operate for 40 years or more in your production process.

LEWA pumps are manufactured according to API standards

API 675‐Standard

The ecoflow series fulfills the internationally valid quality standard of the American Petroleum Institute API 675. It includes all definitions for a diaphragm metering pump in industrial use in terms of its design, construction, performance and acceptance test.

Safety manometer of a LEWA pump

Safety and reliability in extreme operating states

For us, safety and reliability comes first: The pump is not subjected to damage, even after operating errors occur or in extreme operating states. We offer maximum protection for user and machine through built-in safety mechanisms - not only when excess primary pressure is present, but also when the pressure or suction line is closed.

Pumps suitable for a wide range of fluids

Suitable for virtually all fluids

The ecoflow series is suitable for almost all liquids thanks to its flexible design. Whether they are dangerous, toxic, abrasive, viscous, environmentally harmful or sensitive fluids, the user-specific configuration always gives you the correct diaphragm metering pump.

Hermetically tight, leakfree diaphragm pumps

Patented sandwich diaphragm

Our patented LEWA sandwich diaphragm is not only extremely durable, but also well-protected. The LEWA DPS diaphragm protection system and a diaphragm monitoring system allow us to ensure that the diaphragm does not tear during operation and that the pump fluid is not contaminated.

Pressure Valves

Integrated pressure relief valve

A pressure relief valve in the hydraulic part of the diaphragm pump prevents potential overload situations in operation. This valve is individually adjustable and can therefore be adapted to different operating situations.

High energy efficiency

LEWA diaphragm pumps achieve the highest efficiency of all pump technologies. Our ecoflow series also combines high efficiency with low energy consumption.

Hermetically sealed

Diaphragm pumps work without dynamic seals in the process fluid area. This forms a hermetically sealed working area. No emissions escape to the outside, and contamination of the fluid is impossible.

Worldwide standards

When designing pumps, we adhere to globally valid standards such as VDMA 24284, 24286‐10 and FDA guidelines.

LEWA Smart Monitoring

With digital pumps for more efficiency, system availability and profitability of the entire production.

LEWA Smart Monitoring is a monitoring system consisting of sensors, a programmable logic controller (PLC), an industrial PC (IPC) and data analysis for new and existing pumps. The system determines characteristic values and key performance indicators. There is no intervention in process control or direct contact between the sensor system and the conveyed fluid.

With key performance indicator-based condition monitoring, you detect and monitor operating statuses proactively. You can also optimize the overall output and robustness of your pump and pipe systems. This will increase the efficiency of your entire production plant. You can access the data conveniently via your corporate network. Or you use the LEWA cloud with extended analysis and service offers.

Learn more about LEWA Smart Monitoring

    Videos about LEWA ecoflow®

    Options

    Multiplex capability

    Single drive units with vertically installed motor are space-saving. Alternatively, multiple drive units with identical or different output can be combined for pulsation reduction or recipe metering.

    Customized valves

    LEWA uses numerous special types of valves such as specially hardened valves for liquified gases or valves with minimal dead space for the food and pharmaceutical production.

    Diverse connection geometries

    Our pumps are equipped with all common connection geometries such as DIN standard, BASF's high-pressure standard, American ANSI, JIS, or your individual requirements. Customized configurations are possible.

    Integration into process control systems

    The signal acquisition of process control systems is achieved analogously or digitally. Flow rate is adjusted via electric or pneumatic stroke adjustment, alternatively by motor drive (FU).

    Diagnostic connection

    Our pumps and systems have connections that facilitate the diagnosis of their performance. This is done by a service technician on site or via remote monitoring.

    Heating and cooling jackets

    With heating and cooling jackets, our pumps are suitable for almost any temperature and can convey fluids at low temperatures or extreme heat.

    Intellidrive technology

    Using the highly-dynamic servomotor, you can adjust the stroke of the pump to the requirements of your system and your process.

    Special design materials

    If the process demands it, wetted parts such as pumps heads and valves will be made of special materials such as stainless steel 316/316L (1.4401/1.4404), Hastelloy or Duplex steel and PVC.

    Sanitary & hygienic design

    LEWA pumps and systems in sanitary & hygienic design are available for applications that require extremely high purity, such as food production and the pharmaceutical industry.

    Product range

    With the combination of various pump heads and gear units, the LEWA ecoflow diaphragm metering pumps cover a wide performance spectrum. This allows us to provide you with a high-performance, energy-saving pump for any desired application.

    Drive unit data

    TypeHydraulic power[kW]
    LDB0.1
    LDC0.2
    LDD1.0
    LDE2.0
    LDF3.5
    LDG6.0
    LDZ15
    LDH/LDHB20/35
    Performance diagram of LEWA diaphragm and process pumps ecoflow

    Installation dimensions

    Save space and weight through multiple arrangement of pumps or arrangement in the compact boxer design. Meter multiple liquids at the same time with various pump heads..

    Installation dimensions

    TypeL [mm]B [mm]ΔB [mm]H [mm]
    LDB400400185260
    LDC450500220320
    LDD700750280610
    LDE800900350690
    LDF1130900430940
    LDG130013004901000
    LDZ170017007001140
    LDH210018007171500

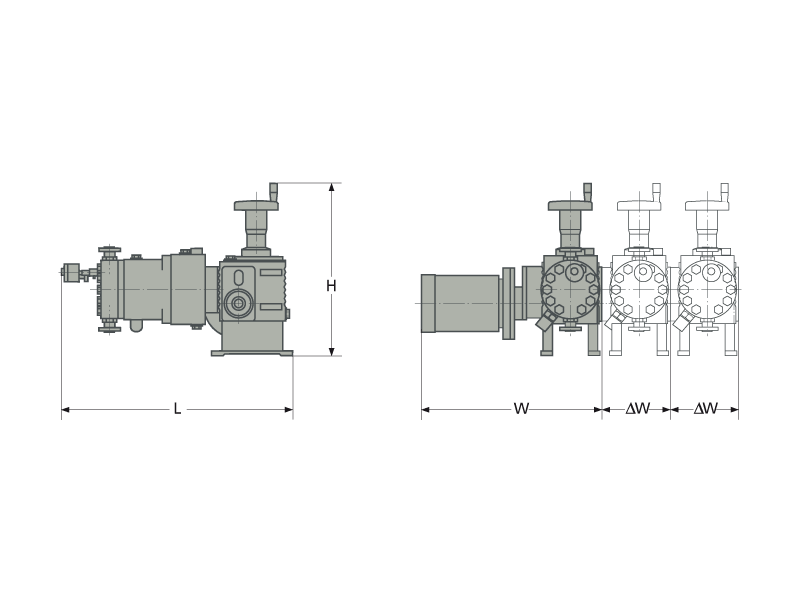

    Assembly dimensions of LEWA ecoflow pump

    Pump head variants

    We provide various pump heads for different applications. Here, the spectrum ranges from all-purpose variants to special designs for high temperatures, pressures or aggressive fluids.

    Pump head M500

    Universal diaphragm pump head with PTFE sandwich diaphragm for high flow rates. Proven, durable, reliable and with diaphragm position control.

    TypeM500
    Pressure350 bar
    Flow rate19 m³/h
    Temperature-50/+150 °C
    Viscosity100.000 mPa∙s
    Operational capabilityMetal pump heads (316/316L): can be installed on all ecoflow drive units ≥ LDE
    Plastic pump heads (PVC/PVDF/PTFE): can be installed on all ecoflow drive units ≤ LDE
    Pump head M500

    Pump head M500

    Pump head M900

    State of the art universal diaphragm pump head with PTFE sandwich diaphragm for maximum operational safety. Robust and reliable with unmatched standard of protection against difficult start up, faulty operation and upset conditions. The patented DPS technology also enables a suction lift capability that is globally unique in the field of hydraulically actuated diaphragm pumps.

    TypeM900
    Pressure500 bar
    Flow rate6 m³/h
    Temperature-20/+150 °C
    Viscosity100.000 mPa∙s
    Operational capabilityCan be installed on all ecoflow diaphragm metering pumps
    Pump head M9

    Pump head M900

    Pump head M800

    Universal diaphragm pump head with PTFE sandwich diaphragm for extreme pressures. The special geometry of the diaphragm clamping system enables the use of PTFE diaphragms in pressure ranges up to 1000 bar and thus results in a very compact shape. Very economical solution in the range of high pressures, especially in comparison to pump heads with metal diaphragms.

    TypeM800
    Pressure1.000 bar
    Flow rate1,1 m³/h
    Temperature-10/+60 °C
    Viscosity100.000 mPa∙s
    Operational capabilityCan be installed on all ecoflow process diaphragm pumps ≥ LDF.
    Pump head M800

    Pump head M800

    Pump head M200/M400

    Proven pump head with metal diaphragm for extreme pressures and high temperatures. Also suitable when a high degree of permeation resistance is required. The diaphragm is working between two contour plates, limiting the deflection of the diaphragm and providing an extreme level of operational reliability. The diaphragm monitoring system offers a plus for safety by immediately displaying the damage of a diaphragm layer.

    TypeM200/M400
    Pressure1.200 bar
    Flow rate1,1 m³/h (M200) 0,8 m³/h (M400)
    Temperature-40/+200 °C
    Viscosity500 mPa∙s
    Operational capabilityM200 can be installed on all ecoflow diaphragm metering pumps ≤ LDE, M400 can be installed on all ecoflow process diaphragm pumps ≥ LDF.
    Pump head M200 M400

    Pump head M200 M400

    Special pump heads in remote head design

    Some tasks in process engineering include the metering or circulation of media with critical properties like high temperature and high abrasivity. These critical conditions frequently need to be kept away from the displacer system of the metering pump, either to protect the system or its operating personnel. A normal metering pump is not suitable for such tasks due to its compact design.

    TypeMR / MV / KV
    Pressure500 bar
    Flow rate19 m³/h
    Temperature-70/+400 °C
    Viscosity100.000 mPa∙s
    Operational capabilityRemote pump heads can be installed on all LEWA ecoflow metering and process pumps and on all LEWA triplex metering and process pumps.
    Pump head remote

    Pump head remote

    Industries

    Complete systems from LEWA for offhore applications in the Oil-and Gas Industry
    Oil- and Gas Industry

    Pumps and Packages for the Production of Crude Oil and Natural Gas

    LEWA has been your expert in pumps and packages since the 1950s. With us, you get everything from a single source: Our custom-built packages are used all around the world for offshore crude oil and natural gas production. From China to the United Arab Emirates, strong partners rely on our expertise for crude oil exploration applications.

    More Details
    Specific systems for the Gas Industry - Odorizing of gas
    Gas Odorizing

    Gas Odorization with LEWA Pumps and Metering Packages

    Natural gas, oxygen, and nitrogen are odorless but potentially dangerous. This is why these gases are "odorized" with as strong a smelling substance as possible. For more than 40 years, LEWA has been developing systems for the odorization of gases such as natural gases, biogases, and liquefied gases. This process is enormously important, so the odorizing system has to operate precisely and reliably.

    More Details
    Reliable pumping solutions for Refineries
    Refineries industry

    Pumps and Metering Systems for Distillation Plants and Applications in Refineries

    Crude oil must be cleaned, separated, and converted (refined) until the final products suitable for sale are made (e.g., gas, diesel, heating oil, lubricants, propane, butane). LEWA supports you with pumps and metering systems, which are used in the refining process during chemical metering. Application with our products are distillation plants, coker, cracker, or visbreaker, for example. Ask our experts for more information!

    More Details
    Pump, systems and skids for the Petrochemical industry
    Petrochemicals Industry

    Pumps and Metering Packages for the Petrochemical Industry

    We have supplied durable pumps and metering systems for applications such as the hydrocracking process for over 50 years. Petrochemicals generate starting products for the manufacture of plastics, pharmaceuticals, colorants, detergents, and other products. Contact our experts and allow us to provide you with detailed information about metering and pumping solutions for the hydrocracking process!

    More Details
    Robust metering solutions for the use in the Chemical industry
    Chemicals  industry

    Chemical Pumps and Metering Packages for the Chemical Industry

    When critical, environmentally hazardous, toxic, or flammable fluids and suspensions need to be reliably conveyed or metered in high-pressure processes, there is no alternative to hermetically sealed metering pumps, process diaphragm pumps, and metering systems from LEWA. Hermetically sealed LEWA pumps with pressures up to 1200 bar are the first choice for the production of chemical intermediate and end products. Contact our experts and let us advise you about your individual chemical pump or system solution!

    More Details
    Metering and dosing additives in the plastics industry
    Plastics industry

    Pumps and Systems for the Plastics Industry

    We offer you special expertise for all compounding processes in the plastics processing industry (addition of waxes, flame retardants, and lubricants). Contact our experts! We're happy to give you advice about metering and pumping solutions for the plastics industry such as in polyethylene processing.

    More Details
    Systems and pumps for the Cleaning and Detergents industry
    Cleaning and detergents industry

    Pumps and Systems for the Manufacture of Detergents and Cleaners

    LEWA offers continually operating, formula-controlled systems for the manufacture of household and industrial cleaners in all commercially available surfactant concentrations – from raw product to end product. Contact our experts and let us advise you – we will work with you to configure pumps and systems for the manufacture of detergents and for the production of other cleaners.

    More Details
    Pumps specially designed for the Cosmetics Industry
    Cosmetics and personal care industry

    Pumps and Systems for the Production of Personal Care Products

    Processes with strict quality and hygiene requirements, such as GMP or the need to avoid preservatives, require the right equipment. We support you in the selection and the design of hygienic components and systems for producing personal care products. Contact our experts and let us advise you – we will work with you to develop customized metering solutions for your process, such as for manufacturing personal care products.

    More Details
    LEWA pumps and systems meet the requirements of the Pharmaceuticals industry
    Pharma and Biotech Industry

    Pumps and Systems for the Pharmaceuticals, Life Sciences and Biotechnology Industries

    As the leading manufacturer of pumps and pump systems for the pharmaceutical, life sciences, and biotechnology industries, LEWA supports you during the development of complete solutions, which meet your process requirements exactly. Special expertise is required in the production of pharmaceuticals in order to ensure that legal requirements are met. Reliability when it comes to production, documentation, and validation are our top priorities.

    More Details
    Metering of sensible fluids in the food and beverage industry with LEWA pumps and systems
    Food an beverages industry

    Pumps and Systems for the Food and Beverage Industry

    LEWA supports producers and plant construction companies in the food and beverage industries with pumps and systems for homogenization and dispersion, as well as for other processing operations in the food industry. We work with you to plan all the important process-related operations, such as conveying, metering, mixing, heating, and cooling so that you can process your raw product cost-effectively.

    More Details
    For energy utilities LEWA provides customer specific pumping solutions
    Energy industry

    Metering Packages and Pumps for Power Plants and Power Suppliers

    LEWA supports power plant operators and power suppliers with pumps and systems for conveying, metering, and mixing different fluids. We not only provide power plants with our products, but also develop solutions for wastewater treatment plants, gas bottlers, biogas producers, regional power suppliers, and hydrogen producers.

    More Details
    LEWA solutions are found also in other industries, for example in the Varnish- and Lacquer industry
    LEWA solutions are found also in other industries

    Pumps and Metering Systems for Other Industries

    LEWA offers customized solutions and references for almost all industries in which processes require exact metering or the reliable conveyance of fluids. As specialists in fluid handling, we of course also have experience in areas outside of our key markets.

    More Details
    Mining industry
    Mining industry

    Pumping solutions for mining and metal and mineral processing

    From the explosives manufacturing, ore extraction and metal and mineral recovery to effluents treatment and final product finishing, our solutions have helped our clients to save energy and consumables while keeping high operational safety and low cost of ownership.

    More Details

    Applications

    Production of plastics for example polyethylene

    Additive metering for plastics

    LEWA provides system solutions for metering additives for plastics. Ask our additive metering experts for more information!

    More Details
    Amine treatment

    Amine treatment

    At LEWA, you receive pumps and systems for amine treatment in power plants. Ask our experts for more information.

    More Details
    Process chromatography

    Downstream processing

    LEWA systems and gradient mixers are used in downstream processing of chemicals and biotechnology. We look forward to receiving your inquiry!

    More Details
    Caustic dilution

    Caustic soda production

    At LEWA, find out about custom plants for producing and diluting different bases like caustic soda. Ask our experts for more information.

    More Details
    Waste water oxidation

    Wet oxidation of waste water

    For wet oxidation and other processes, we recommend our tried-and-tested LEWA diaphragm pumps. Ask our experts for more information!

    More Details
    Polyethylene production

    Polymerization

    LEWA manufactures metering pumps and metering systems for polymerization which optimally meet the necessary requirements. We are happy to help.

    More Details
    Foaming agent metering in Extruders

    Extruder blowing agents

    Precise metering of blowing agents into extruders with LEWA systems. We provide you insights on the metering accuracy and process optimization solutions from LEWA.

    More Details
    Metering of Supercritical fluids for example in the coffee production

    Extraction with supercritical fluids

    Processes with supercritical fluids in pharmaceutical, food and beverage industries. Ask our experts for more information!

    More Details
    Production of pills in the Pharmaceuticals Industry

    Pharmaceuticals production

    Metering pumps and metering systems must meet the following demands of pharmaceutical production.

    More Details
    Melamine production

    Production of melamines

    LEWA metering and process diaphragm pumps meet the specific demands for the production of melamine (trimerization of urea). Consult us!

    More Details
    Chemical injection in the Oil and Gas Industry

    Chemical metering in high-pressure cleaning systems

    LEWA metering and process diaphragm pumps meet the specific demands for the production of melamine (trimerization of urea). Consult us!

    More Details
    Biofuel production

    Production of biodiesel

    LEWA provides metering systems for producing biodiesel and other biofuels. Consult us!

    More Details
    Hydrocarbon condensate

    Disposal of hydrocarbon condensate

    LEWA systems help you transport and dispose of hydrocarbon condensates (HCC) that arise when producing natural gas, both onshore and offshore.

    More Details
    Production of detergents

    Dilution of surfactants

    Dilution of surfactants such as sodium lauryl ether sulfate (SLES) with LEWA pumps during production of detergents.

    More Details
    Butter production in the food industry

    Butter production

    In order to sustain consistent quality of spreadable butter, ingredients like rapeseed oil, water, and brine are metered flexibly and fully automatically with ecoflow pumps.

    More Details
    Biomass to Liquid - Production of Fuels

    Production of biofuels

    Biofuels are produced using metering and process pumps from LEWA in the remote-head design. Learn more about these and other applications!

    More Details
    Coal production in the Mining Industry

    Coal refinement with remote-head metering pumps in condensing systems

    When coal is refined, it is ground as fine as dust and mixed into a suspension kept at a high temperature. LEWA metering pumps with a remote pump head are used for this.

    More Details
    Flue gas cleaning for all industry

    Flue gas cleaning by means of metering sulfur | LEWA

    When using an electrofilter for flue gas cleaning, metering sulfur improves the filtration efficiency. LEWA has the solution!

    More Details
    Gelatine production for sweets

    Production of gelatine

    In the production of gelatin and in the fabrication of gelatin products, LEWA pumps and systems are used. We would be happy to give you more information!

    More Details
    Produced water processing

    Processing of produced water

    Produced water packages from LEWA can be used to purify produced water during oil drilling. They are hermetically sealed and have options for exact control.

    More Details
    Energy independent injection for remote areas such as deserts

    Autonomous energy utilities

    Supplying energy to production plants in remote areas of application is often difficult. Ensure an autonomous fuel supply with diaphragm pumps.

    More Details
    Homogenization in Pharma processes

    High purity systems

    Pumps and high purity systems from LEWA are a tried-and-tested solution in the pharmaceutical & biotechnology industry. We are happy to assist with your individual high purity system.

    More Details
    Micoflow pumps for the metering of small quantities: LEWA intellidrive

    Continuous metering of extremely small quantities with LEWA intellidrive

    Minimum flow rates down to 1 ml/h: With LEWA intellidrive technology, we already have created solutions for many applications with very small flow rates.

    More Details
    LEWA remote head metering pump for CO2-cooling in large hadron collider

    Oil-free CO2 cooling with LEWA pumps

    LEWA diaphragm metering pumps provide a constant oil-free CO2 cooling of silicon sensors in particle physics research center CERN.

    More Details

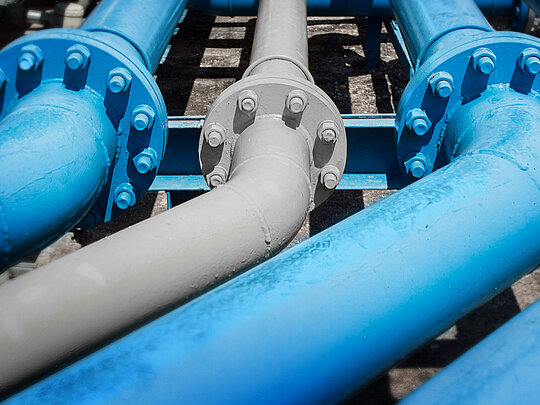

    Odorizing systems for the distribution of gas in hubs

    Gas odorization in the natural gas distribution grid

    At hubs in the gas distribution network, big amounts of natural gas are forwarded. LEWA odorization unit OD 4200 is able to odorize gas amounts of up to 1.000.000 m³/h.

    More Details
    Adding anstatic agents in fuel production applications

    Adding antistatic agents to improve the conductivity of fuel

    Antistatic additives or antistatic agents prevent the electrostatic charging of fuels which occurs due to the friction in the pipelines during transport. Use LEWA metering systems for this application!

    More Details
    Cleaning of circuit boards

    Adjustment of cleaning agent concentration for electronic components

    LEWA metering systems adjust concentrations of cleaning agents for the immersion cleaning of electronic components.

    More Details
    Emulsifyer dilution (Mayonaise)

    Dilution of emulsifiers

    With its metering systems and diaphragm pumps, LEWA offers the right solution for recipe-compliant emulsifier dilution.

    More Details
    Omega 3 fatty acids

    Extracting omega-3 fatty acids using supercritical CO2

    LEWA offers optimum pump solutions for these processes, which perform their tasks safe, permanently reliable and efficiently

    More Details
    Production of creams

    Production of creams

    With its metering systems and diaphragm pumps, LEWA offers the right solution for recipe-compliant production of creams.

    More Details
    Hydroconversion in Refineries

    Hydroconversion in refinery processes

    With its remote-head metering pumps, LEWA offers the optimum solution for hydroconversion in refinery processes.

    More Details

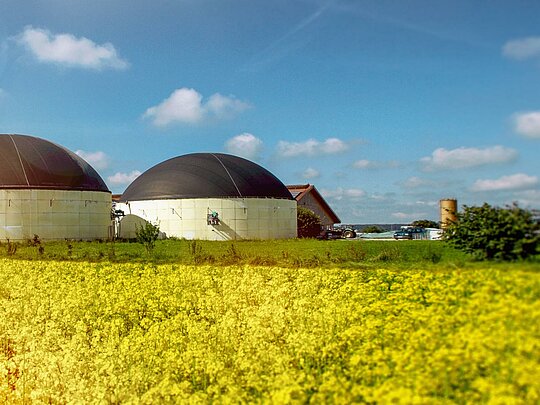

    Biogas odorization

    The biogas odorizing systems from LEWA ensure a correct metering even with gas flow range of 150 Nm³/h with a gas pressure of up to 20 bar. Get in touch with our experts for your individual odorizing task!

    More Details
    Fractionation with carbon dioxide

    Fractionation

    LEWA pumps and systems fulllfill necessary international standards and regulations for production in regulated industries (GMP)

    More Details
    Sulfuric acid injection in copper heap leaching

    Sulfuric acid injection in copper heap leaching

    LEWA process pumps are used to reinject sulfuric acid at 98% into the main pipelines that go to the heap leach sprinklers.

    More Details

    Industrial refrigeration

    With the NIKKISO Non-Seal canned motor pump, LEWA offers suitable solutions for cold storage, cooling and freezing.

    More Details
    Dispersing in various markets

    Dispersing

    With the diaphragm metering pumps and streamlined suspension valves, LEWA offers the suitable solution for the metering of fluids with solid particles.

    More Details
    Esterification

    Esterification

    With LEWA process diaphragm pumps, as well as the NIKKISO Non-Seal canned motor pumps we offer the optimum solution for esterification.

    More Details
    Metering Additives to fuels

    Additive dosing for fuels

    LEWA supplies both diaphragm metering pumps and process diaphragm pumps for additive dosing in fuels. We provide you with the right pump and advice for your application.

    More Details

    Solutions for flavor and color metering in the confectionery industry

    LEWA creates custom-made, complete solutions that are ready to implement in your applications.

    More Details

    Polymerization in EVA reactors with process pumps

    Production of ethylene vinyl acetate (EVA) with LEWA process pumps. We provide you with the right pump and advice for your application.

    More Details

    Downloads

    LEWA ecoflow custom made metering pumps (USA)

    LEWA ecoflow (USA)

    Custom made metering pumps.
    3 MB | pdf | 18.02.2022

    Open
    LEWA ecoflow bombas de dosificación hechas a la medida (ES)

    LEWA ecoflow (ES-SA)

    Bombas de dosificación hechas a la medida.
    3 MB | pdf | 18.02.2022

    Open
    LEWA Lösungen für die Öl- & Gasindustrie (DE)

    LEWA Lösungen für die Öl- & Gasindustrie. (DE)

    High-end Dosier- und Prozesspumpen sowie Systeme und Packages für spezifische Funktionalitäten zum Einsatz in der On- und offshore Förderung.
    4 MB | pdf | 18.10.2022

    Open
    LEWA Solutions for the oil & gas industry (EN)

    LEWA Solutions for the Oil & Gas Industry. (EN)

    High-end metering and process pumps as well as systems and packages for specific functions for use in onshore and offshore production.
    4 MB | pdf | 18.10.2022

    Open

    Poster LEWA ecoflow Pumpenkopf M900 (DE)

    Poster LEWA ecoflow Pumpenkopf M900 (DE)
    121 KB | pdf | 22.02.2019

    Open

    Poster LEWA ecoflow Pumpenkopf M500 (DE)

    Poster LEWA ecoflow Pumpenkopf M500 (DE)
    137 KB | pdf | 22.02.2019

    Open

    Poster LEWA ecoflow Schnittbild (DE)

    Poster LEWA ecoflow Schnittbild (DE)
    333 KB | pdf | 22.02.2019

    Open

    Poster LEWA ecoflow pump head M500 (EN)

    Poster LEWA ecoflow pump head M500 (EN)
    439 KB | pdf | 22.02.2019

    Open

    Poster LEWA ecoflow Pumpenkopf M200 (DE)

    Poster LEWA ecoflow Pumpenkopf M200 (DE)
    275 KB | pdf | 22.02.2019

    Open

    Poster LEWA ecoflow pump head M900 (EN)

    Poster LEWA ecoflow pump head M900 (EN)
    121 KB | pdf | 22.02.2019

    Open

    Poster LEWA ecoflow cutaway (EN)

    Poster LEWA ecoflow cutaway (EN)
    335 KB | pdf | 22.02.2019

    Open

    Poster LEWA ecoflow pumphead M200 (EN)

    Poster LEWA ecoflow pumphead M200 (EN)
    627 KB | pdf | 22.02.2019

    Open
    LEWA ecoflow maßgeschneiderte Dosierpumpen (DE)

    LEWA ecoflow maßgeschneiderte Dosierpumpen (DE)

    LEWA ecoflow ist ein umfangreiches Baukastensystem für Membran- und Kolbenpumpen. Es kombiniert sieben Triebwerksgrößen mit sechs unterschiedlichen Pumpenköpfen.
    3 MB | pdf | 18.02.2022

    Open

    LEWA ecoflow bombas dosadoras customizadas (PT)

    A ecoflow LEWA é um extensivo sistema modular para bombas dosadoras de diafragma e de pistão. Ela combina sete tamanhos de unidade com seis diferentes cabeças de bomba.
    3 MB | pdf | 18.02.2022

    Open

    LEWA ecoflow custom-made metering pumps (EN)

    LEWA ecoflow is an extensive modular system for diaphragm and packed plunger metering pumps. It combines seven drive sizes with six different pump heads.
    3 MB | pdf | 18.02.2022

    Open

    Soluciones de LEWA para la industria del petróleo y gas. (ES-SA)

    Bombas de dosificación y de proceso de alto nivel, así como sistemas y paquetes para funciones específicas para su uso en producción tanto en la tierra como en el mar.
    3 MB | pdf | 18.02.2022

    Open

    LEWA Solutions for the Oil & Gas Industry. (USA)

    High-end metering and process pumps as well as systems and packages for specific functions for use in onshore and offshore production.
    4 MB | pdf | 06.11.2022

    Open

    Remote Head Konstruktionen für LEWA Pumpen

    LEWA Remote-Heads. Entkoppelung vom Verdrängersystem für mehr Sicherheit.
    1 MB | pdf | 18.02.2022

    Open

    Remote Head Designs for LEWA pumps

    LEWA remote heads. Disconnecting from the displacement system for more safety.
    1 MB | pdf | 18.02.2022

    Open

    LEWA process diaphragm pumps LEWA triplex and LEWA ecoflow for process engineering. (EN)

    LEWA process diaphragm pumps set the standard for process engineering, allowing even critical, toxic, or flammable fluids to be conveyed safely.
    4 MB | pdf | 18.02.2022

    Open

    LEWA process diaphragm pumps LEWA triplex and LEWA ecoflow for process engineering. (USA)

    LEWA process diaphragm pumps set the standard for process engineering, allowing even critical, toxic, or flammable fluids to be conveyed safely.
    4 MB | pdf | 18.02.2022

    Open

    LEWA Prozess- Membranpumpen LEWA triplex und LEWA ecoflow für die Verfahrenstechnik. (DE)

    LEWA Prozess-Membranpumpen setzen den Standard in der Verfahrenstechnik. Mit ihnen können selbst kritische, toxische oder brennbare Flüssigkeiten sicher gefördert werden.
    4 MB | pdf | 18.02.2022

    Open

    Keep in touch with us

    Get insights into our products and applications for liquid metering. You will also receive all the latest news about LEWA as well as invitations to our exclusive events.

    Captcha image

    ©2024 LEWA (Dalian) Fluid Technology Co., Ltd. 辽ICP备2023015867号 辽公网安备21021702000704号  Terms & Conditions Privacy Imprint
